VTD-014Power

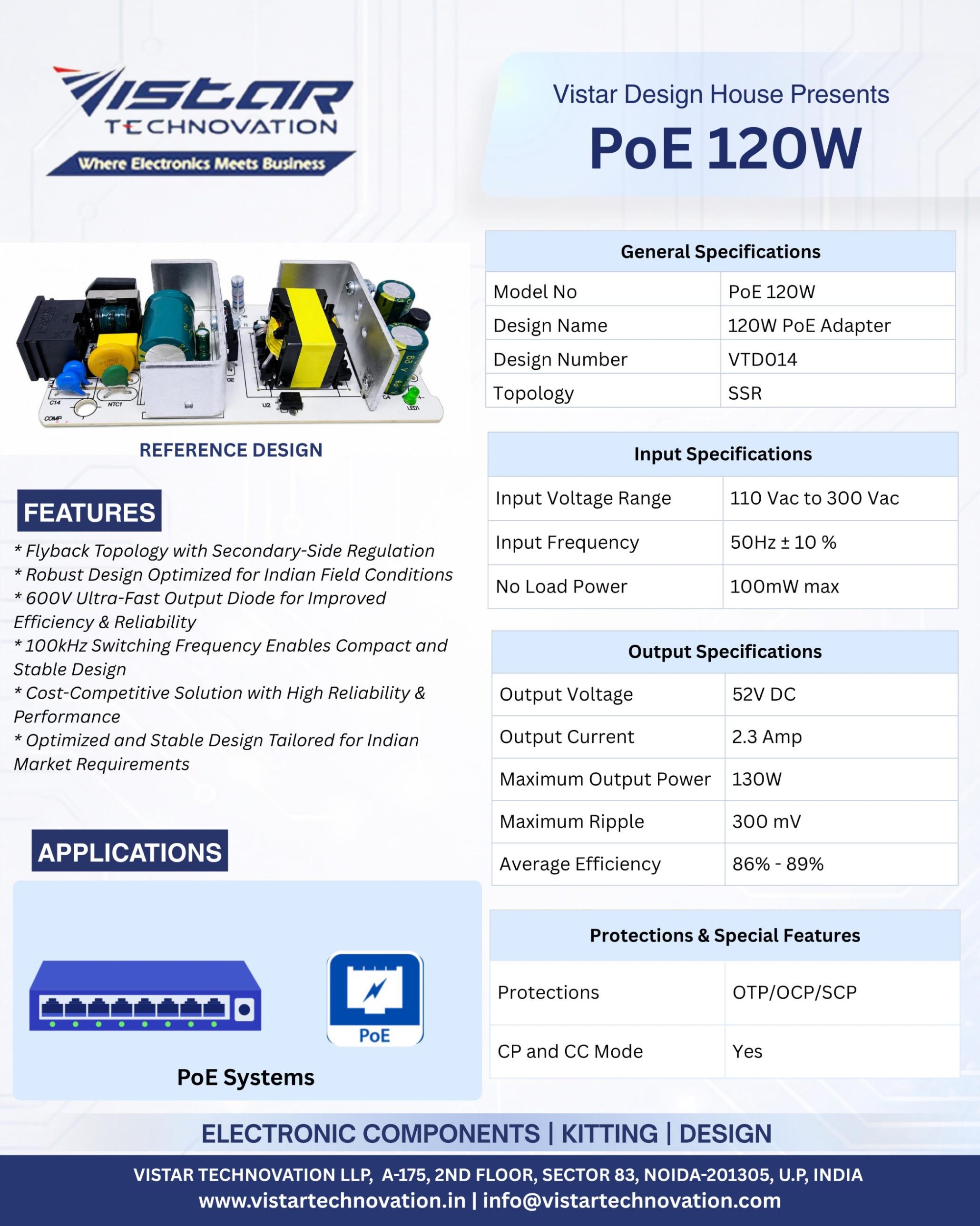

120W PoE Adapter
Key Features
- Flyback Topology with Secondary-Side Regulation
- Robust Design Optimized for Indian Field Conditions
- 600V Ultra-Fast Output Diode for Improved Efficiency & Reliability
- 100kHz Switching Frequency Enables Compact and Stable Design
- Cost-Competitive Solution with High Reliability & Performance
- Optimized and Stable Design Tailored for Indian Market Requirements
Technical Specifications
General Specifications
| Model No | PoE 120W |
| Design Name | 120W PoE Adapter |
| Design Number | VTD-014 |
| Topology | SSR |
Input Specifications
| Input Voltage Range | 110 Vac to 300 Vac |
| Input Frequency | 50Hz ± 10% |
| No Load Power | 100mW max |
Output Specifications
| Output Voltage | 52V DC |
| Output Current | 2.3 Amp |
| Maximum output power | 130W |
| Maximum Ripple | 300 mV |
| Average Efficiency | 86% - 89% |
Protections & Special Features
| Protections | OTP/OCP/SCP |
| CP and CC Mode | Yes |
Applications
PoE Systems
